Description

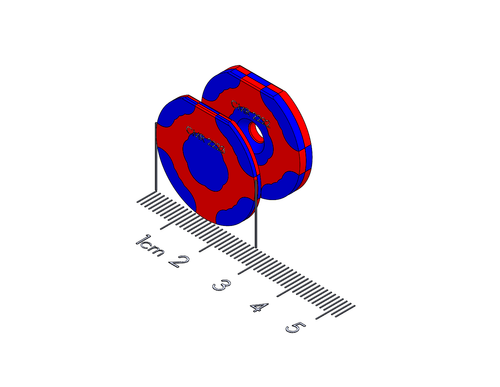

T2294 is a complete set of Polymagnets designed with 4 detent positions, every 90 degrees. The magnets are D-shaped as an indexing feature for alignment during assembly and to resist the torque created when the magnets are rotated with respect to each other. It contains:
- 1002222 - Detent Polymagnet, 0.125" thick with #6 countersink
- 1002223 - Detent Polymagnet, 0.063" thick
| Additional Information: | T2294 |
| Coating | Ni-Cu-Ni |
| Material | NdFeB |
| Grade | N50 |
| Temperature Rating (C) | 60 |
| Mass (oz) | 0.05 |
| Thickness (in) | 0.125 and 0.0625 |
| Outer Diameter (in) | 1.00 |
| Countersink | #6 |
| Shape Type | D-Disc |
| Link to Datasheet and CAD Drawing | Datasheet, CAD |
Extra Information
Brand:
Polymagnet
Width:
1.00
(in)
Height:
0.13
(in)
Depth:
1.00
(in)
